TECHNICAL PARAMETERS

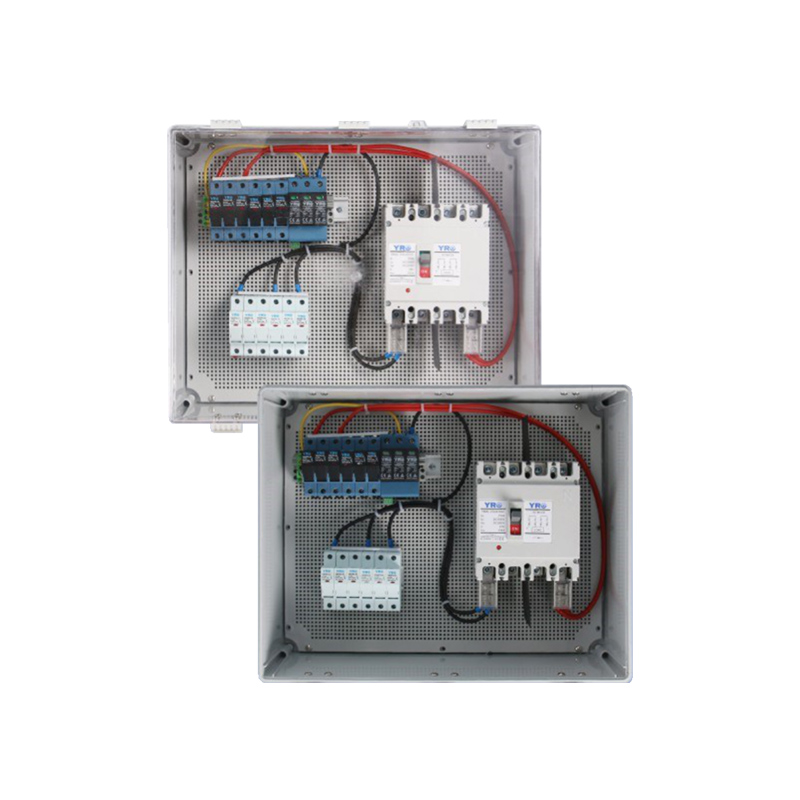

| SP-PV-6/1 | |||
| General Data | DC Surge Arrester | SPSP-D2 | |
| Model No | SP-PV/6/1 | Max Operation Voltage(Ucpv) | 1000V |

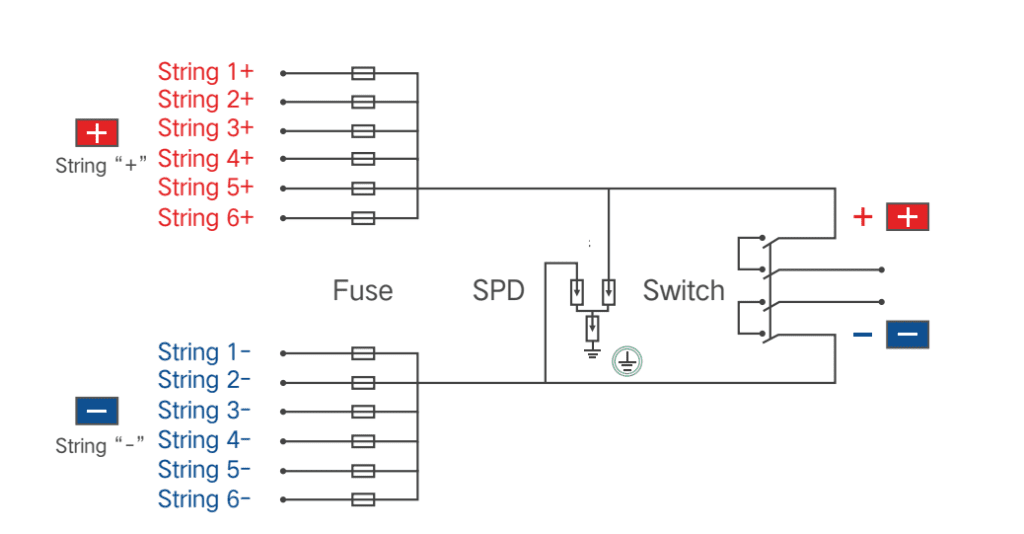

| Input | 6 string | Standard Compliance with | EN 50539 Type2 |
| Output | 1 string | Maximum Discharge Current | 40KA |
| Maximum Voltage | 1000V | Certification | TUV CE C8 |
| Max DC Short Circuit Current Per Input(lsc) | 15A(changeable) | ||
| Maximum Current Output | 80A | ||
| Enclosure | SP54PN | DC fuse holder | SPOPV-32B&SPOPV-30 |
| Material Type | Polycarbonate/ABS | LED Indicator | Yes |
| Degree of Protection | IP65 | Rated Working Voltage | 1000V |
| Degree of Resistance to Impacts | IK10 | Fuse Link | 10*38mm LITTEL 15A |
| Dimension (WxHxD) | 540*360*180mm | Certification | TUV CE |
| Cable input Entry | PG09 Cable Gland,2.5-16mm² | ||
| Output Cable Gland | PG36 50-70mm² | ||
| DC Switch Disconnector | SPM1Z | Environment | |
| Rated Insulation Voltage (Ui) | 1000V | Operating Temperature | -20℃~+60℃ |
| Rated Current (le) | 125A | Humidity | 99% |
| Standard Compliance with | IEC 60947-3 | Altitude | 2000M |
| Installation | Wall Mounting | ||
